Use

Domains: Continuous. Size: 1-D. Kind: Block Diagrams.

Description

This is a fourth order Butterworth filter. The bandwidth is given in Hz. The phase and magnitude plot (bandwidth = 1 Hz) are shown in the figure below.

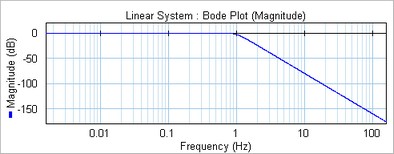

Butterworth4magnitude

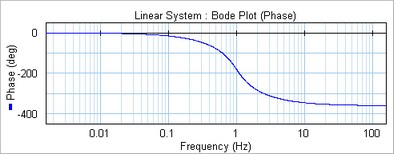

Butterworth4phase

Interface

Outputs

Description

input,output



Parameters



BW

Bandwidth (Hz)

Initial Values



y_initial

Output value of the filter at t = 0 s.
