Edit Window

Previous pageReturn to chapter overviewNext page

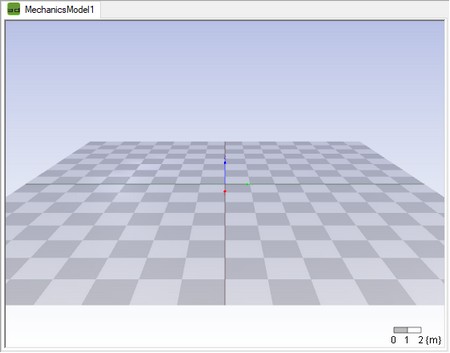

In the center of the 3D Mechanics Editor the Edit window is visible. At the start a reference frame and a base plane is shown. In the Edit window, you can insert components and assemble you model.


In the Edit Window you can assemble your model.
